Autel TESKIT Tesla Diagnostic Cables Connection Guide

Autel TESKIT Tesla Diagnostic Cables are used to activate factory mode, diagnose Tesla S and X vehicle models with MaxiSys tablets. Including 3 cables, plug and play. Applicable for Autel MS908S Pro, Elite, Elite II, MS909, MS919, Autel Ultra, Ultra Lite scanner.

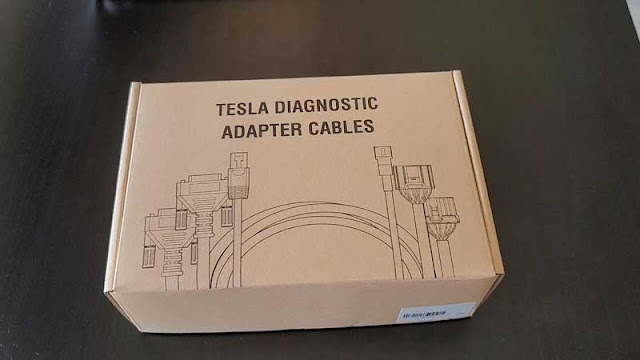

Autel TESKIT Package

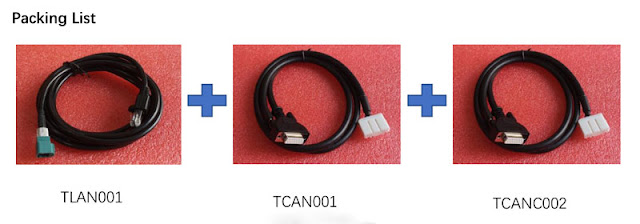

1pc × TLAN001 Cable
1pc × TCAN001 Cable
1pc × CANC002 Cable
1pc × Connection Guide

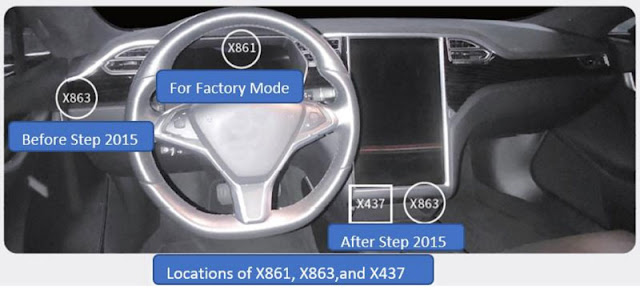

Adapter Cable	Supported Model	Model Year	Connection Port	Connection Port Location	Function
TLAN001	Model S, Model X	All	X861	On the back of instrument cluster	Activate factory mode
		2015.9-	X863	Below the central control screen	Diagnose LAN related systems
		-2015.9		On the left side of instrument cluster
TCAN001		2015.9-	X437	Below the central control screen	Diagnose CAN related systems
TCAN002		-2015.9

Autel Tesla Diagnostic Coverage

Tesla Diagnostic Adapter Required Tools
Torx T20 socket
Plastic crowbar
10mm deep socket

Preparation Before Disassembly
Warning: be sure that vehicle power is off before disassembling.
1. Tab the lower-left corner of the central control screen in the following sequence: Vehicle Icon >> Safety & Security >> Power Off.
2. Disconnect the negative cable of the 12V battery at the front compartment.
3. Disconnect the first responder loop on the right side of the 12V auxiliary battery.
